Product Details:

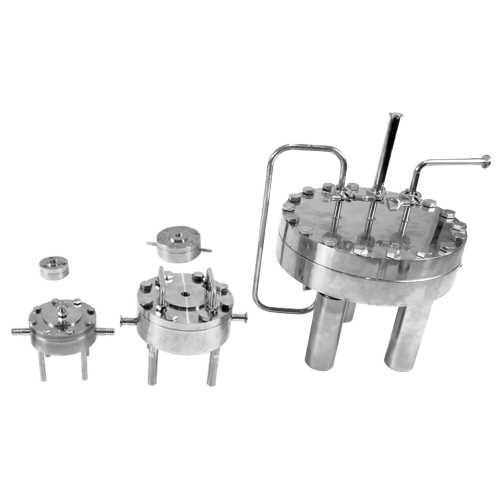

Product name: Online Liposome Extruder (Experimental Pilot Production Model)
Product Model: Online Liposome Extruder
Product Exhibitor: 澳门赌场在线娱乐
Product Origin: United States
Product specifications: GExtruder-5ml/min; GExtruder-1500ml/min;GExtruder-5000ml/min
Product characteristics:
澳门赌场在线娱乐 Online Liposome Extruder is high pressure homogenizer or pump online driven, from testing to manufacture production of liquid and lipopolyplex for drug and gene delivery; Temperature control is available.
Brief introduction:
The online experimental to production liposome extruder can be used to prepare liposomes in batches ranging from 10mL to 5000mL, with a particle size of 50-200nm. It can be used with manual pumps, electric pumps, high-pressure homogenizers, and air pumps, and the operating pressure is from 1500-5000psi. It can be prepared for liposomal production of doxorubicin, paclitaxel, amphoteric B, doxorubicin, daunorubicin, cytarabine, vincristine, cisplatin, econazole nitrate. Easy to clean and sterilize, and complies with GMP and FDA pharmaceutical factory specifications.
Liposome extruder schematic diagram
Product parameters:
Liposome sample processing capacity is 10ml-10000ml, production liposome preparation processing capacity is 10L, 20L, 50L, 100L. On-line type as small as 10ml sample handling capacity
: Connected to homogenizer or high-pressure pump
sanitary grade micron perforated extruded membrane support plate (no need to use Drain Disc or Filter Support)
Optional liposome extruded membrane 10nm, 30nm, 50nm, 80nm, 100nm, 200nm, 400nm, 800nm, 1000nm and other
advantages:
It adopts a micron perforated extruded membrane support plate (regular holes visible to the naked eye) and has no metal particles. It is suitable for drug production and
use. Only one polycarbonate membrane needs to be installed, and no additional Drain Disc or Filter Support is required. Operation is easier and long-term. It can save a lot of money to buy auxiliary membranes
. The power supply cylinder does not need to be pushed back and forth manually. Compared with manual extruders, it has a higher and wider sample processing volume range
. American 澳门赌场在线娱乐 Online Liposome Extruder Chinese Instructions.pdf
